Cutting Thickness: 1-50mm
Cutting Speed: 0-5000mm/min
Working Material: Iron, Steel, Aluminum Sheets, Galvanized Sheets
Working Thickness: 0.5-30mm or Customize
Input Voltage: 380V 50Hz
Working Mode: Untouched Arc Striking
Transmit Way: Taiwan Imported Ball Screw
Rail Guide: Precision Work Round
Optional Power Source: America Hypertherm and Ame
Z Axis Travel: 0-70mm
Itam: CNC Plasma Metal Cutting Machine
It is a kind of CNC cutting equipment with high efficiency and high precision, and can reduce labor intensity.

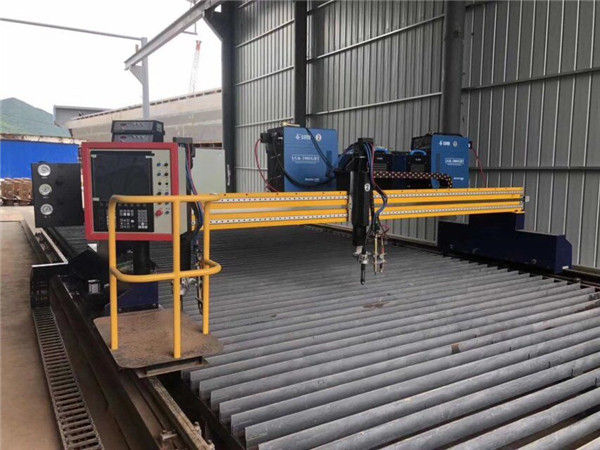

This machine uses gantry style, and has plasma or flame cutting style. It is easy to maintain and to operate, and it is reliable.
It has compact and rational construction, and the price is reasonable. It is more suitable for mediumsized and small enterprises to buy and use.
Main configuration and function introduction
# Strong drag chain--Traction and protection, smart high intensity, ametabolic rigidity, easy installation, use and reliable, easy yo tear open outfit.
# To protect the cable also make machine overall looks more beautiful
# Double heads--plasma cutter head can cut less than 40mm thickness( depends on power supply's current),
flame cutter head can cut 200mm thickness, can perfect meet your cutting demands
# Limit switch---Use it to control the workpiece movement or automatic feed, to avoid collision accident
# 24KGS guide rail--more stable
# Starfire cutting system and HYD auto arc voltage THC ---
The numerical control system with high disposes, the automatic striking arc, the performance is stable,Automatic height adjust system
---can according to your material planeness, cutting head can automatically stable, and fast adjust.
|2||Horizontal track space||3 m|
|3||Lebar pemotongan efektif||2m|
|4||Longitudinal track space||4 m|
|5||Panjang pemotongan efektif||3 m|
|8||Ketebalan pemotongan||0-40mm--plasma cutter head|
200mm--flame cutter head
|9||Sistem pemotongan||Starfire cutting system (English)|
|10||Arc height control||Arc torch voltage height control|
|11||Table structure||Whole iron body, thick steel|
|12||Motor||Japan YASKAWA servo motor--3 sets|
|13||Planet reducer||Japan SHIMPO|
|15||Cara transmisi||High precision rack gear|
|16||Rel panduan||All axis use HIWIN square rail|
|17||Solenoid valve||Italy CEME|
|18||Sumber Daya listrik||Hypertherm MAXPRO200A|
|20||Perangkat lunak bersarang||Australia FASTCAM software|
|21||Output way||Artcam, type3|
|22||LCD display dimension||10.4 inches|
|23||Mode penggerak||Mode penggerak|
|24||Perangkat pengatur ketinggian||Arc voltage height and Electric adjustable high|
|25||Tekanan gas||Max. 0.1 Mpa|
|26||Oxygen pressure||Max. 0.7 Mpa|
|27||Other parts||One set plasma nozzle sent for free|
They are widely used in ship, car, boiler pressure vessel, steel structure, plane, engineering machinery and other fields.
They use flame cutting to cut carbon steel, use plasma to cut stainless steel, aluminum, copper and other metal plates. They are especially fit for irregular drawing batch cutting.
